RAGCO PTFE
JOINT SEALANT
100% PURE EXPANDED PTFE
WITH ADHESIVE BACKING
RAGCO® Joint Sealant is a highly fibrillated expanded PTFE form-in-place sealant for gasketed joints and conforms to FDA requirements. Supplied on spools, RAGCO® Joint Sealant comes in various thicknesses with a high quality adhesive backing to ease in installation, making it ideal for worn flanges of all sizes and is not dependent on flange dimensions. It exhibits flexibility, compressibility and stability under high temperature and high tensile strength.
APPLICATION

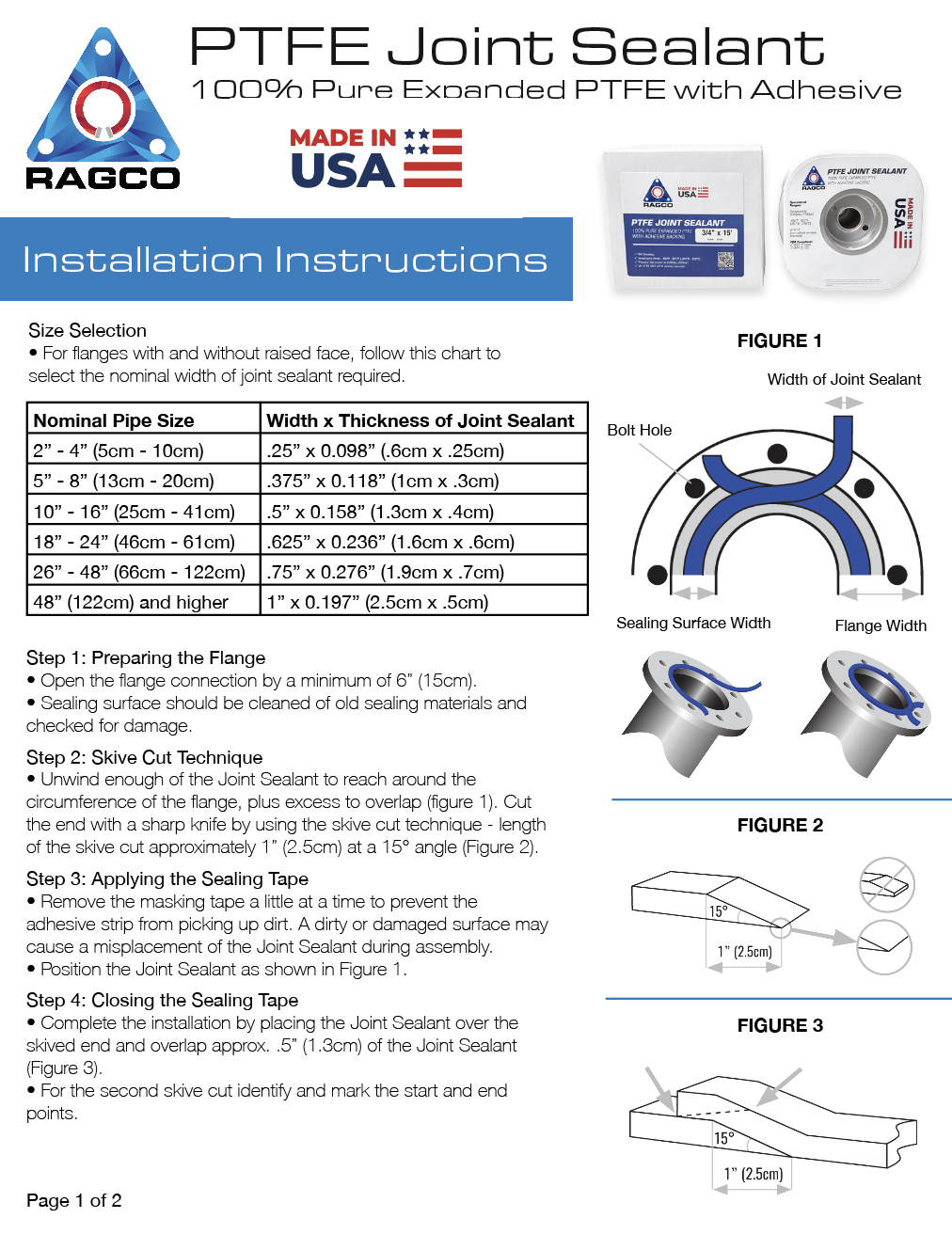

A highly fibrillated expanded PTFE form-in-place sealant for gasketed joints. Supplied on spools, it is not dependent on flange dimensions. RAGCO® Joint Sealant comes in various thicknesses with a high quality adhesive backing to ease in installation and is ideal for worn flanges of all sizes. It exhibits flexibility, compressibility, stability under high temperature and high tensile strength. RAGCO® Joint Sealant is chemically inert and resists creep relaxation to maintain a tight seal. RAGCO® Joint Sealant conforms to FDA requirements. RAGCO® Joint Sealant is easily cut with scissors to the correct length. The adhesive backing holds the sealant in place while position around the flange inside the bolt circle to isolate the flow media. The ends should overlap 3/4″ to 1″ on either side of a bolt to ensure leak-tight performance. It is recommended to use a size about 40-50% of the sealing surface.
COMPOSITION
RAGCO® Joint Sealant is made with only 100% pure PTFE resins and exhibits the same chemical resistance of virgin PTFE.
White
-268°C (-450°F)
316°C (600°F)
3,000psi (210
25
0.05 cc/min
PHYSICAL PROPERTIES
Color
Temperature Min
Temperature Max
Pressure, max, psi (bar)
Creep Relaxation, %
Sealability
ASTM 2378 (Nitrogen)
1/4″ x 3/32″ (0.098″)
3/8″ x 1/8″ (0.118″)
1/2″ x 5/32″ (0.158″)
5/8″ x 7/32″ (0.236″)
3/4″ x 9/32″ (0.276″)
1″ x 3/16″ (0.197″)
RECOMMENDED USAGE W X THK
2″ – 4″
5″ – 8″
10″ – 16″
18″ – 24″
26″ – 48″
48″ and higher

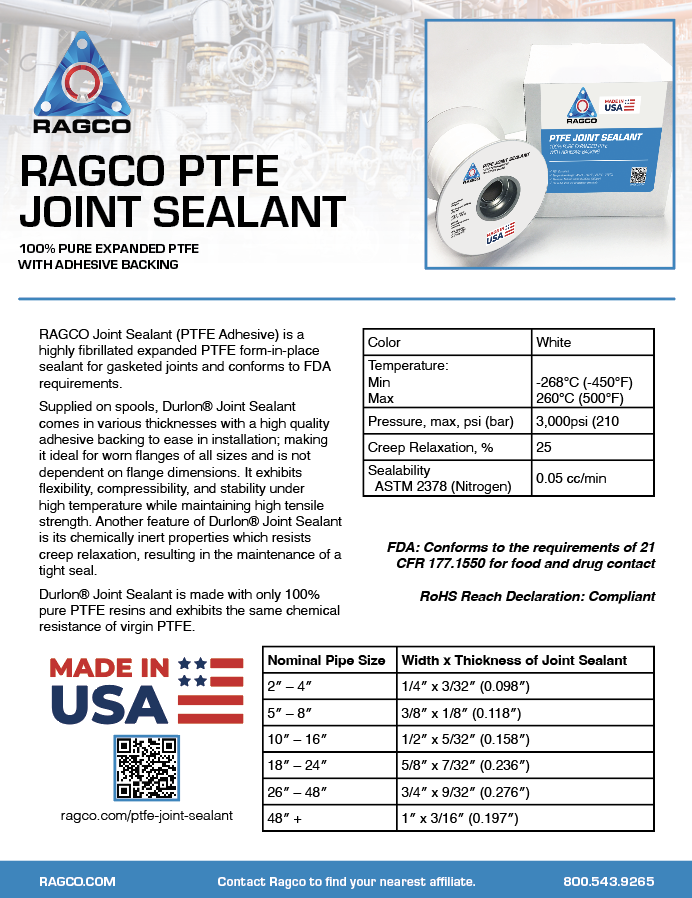

Click to download spec sheet
